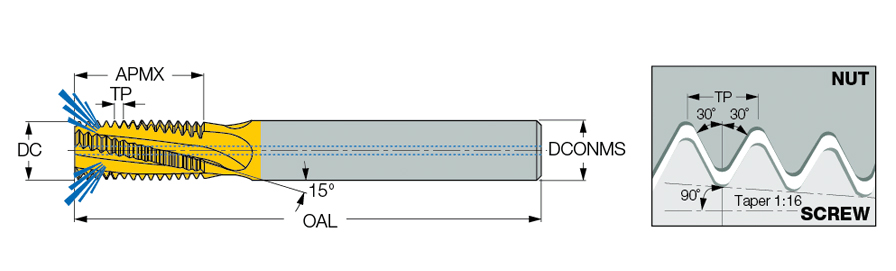

| Threads per Inch (TPI) | 14 Threads/" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | NPT |THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 15.5 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 101 mm | Grade | IC908 |
| Flute Count (NOF) | 4 | Tool Type | Solid Carbide Thread Mills |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 22.7 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPT60 |
Product Features
| Family Description | Solid carbide threading endmills with coolant holes located in the flutes, used for internal or external NPT thread profile. | Country of Origin | Israel |
Shipping Info
Package Weight
0.553
