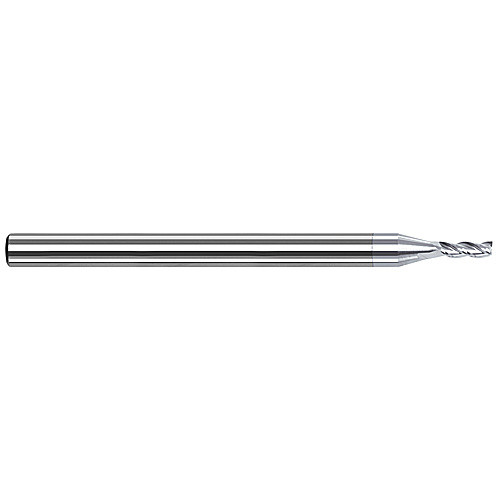

3 Flute - 0.1406″ (9/64) Cutter DIA × 0.7500″ (3/4) LOC - TiB2 Coated Variable Helix End Mills for Aluminum Alloys - Square
SQ End Mill; 9/64″ Dia. × 3/4″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; TiB2
| Cutting Diameter (DC) | 9/64″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | 5D |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiB2 | Decimal Equivalent | 0.141″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Shank Size (SS) | 3/16″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
