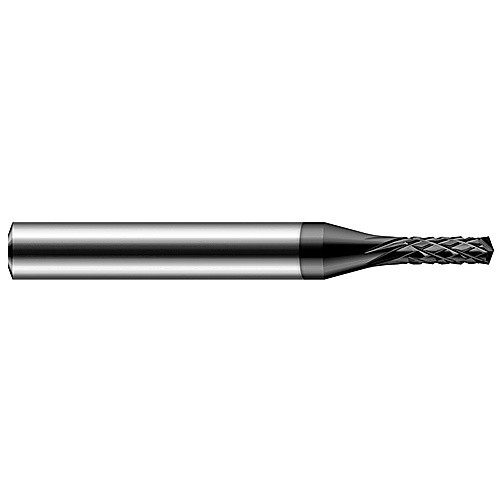

0.3750″ (3/8) Cutter DIA × 1.1250″ (1-1/8) LOC × 140 Degree included - 11 RH Teeth, 13 LH Teeth - Amorphous Diamond Coated End Mills for Composites - Diamond Cut - Drill Mill Style
SQ End Mill; 3/8″ Dia. × 1-1/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 11 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 3/8″ | Applicable Material | | Other Non-Metallic Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Length Group | 3D |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | DLC | Measurement Type | Inch |
| Flute Count (NOF) | 11 | Shank Size (SS) | 3/8″ |
| Flute Helix Angle (FHA) | 25 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| Usable Length (LU) | 1-1/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.5
