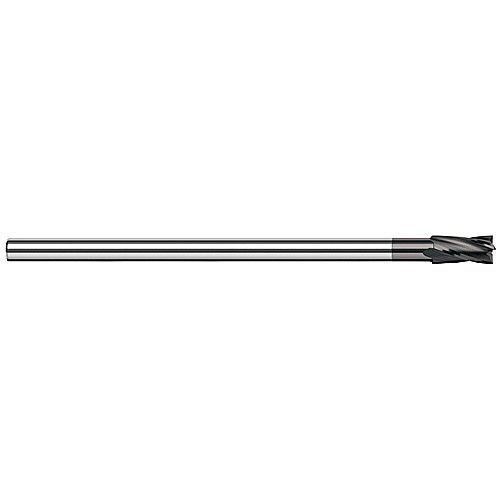

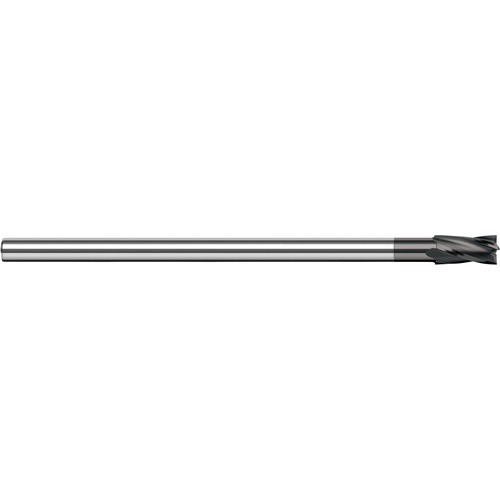

2 Flute - 0.1250″ (1/8) Cutter DIA × 0.1870″ (3/16) LOC - Amorphous Diamond Coated End Mills - Square - Reduced Shank
Square End Mill; 1/8″ Dia. × 3/16″ LOC × 0.1181″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 3/16″ |
| Connection Diameter Machine Side (DCONMS) | 0.1181″ | Length Group | 1.5D |
| Depth of Cut Maximum (APMX) | 3/16″ | Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | DLC | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Shank Size (SS) | 0.1181″ |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.040
