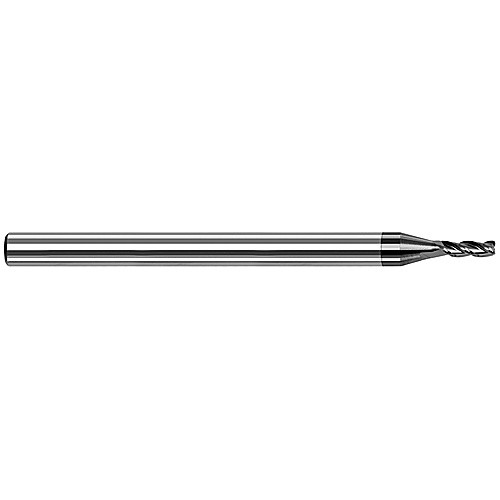

3 Flute - 0.0930″ (3/32) Cutter DIA × 0.0100″ Radius × 0.2790″ LOC - Amorphous Diamond Coated Variable Helix End Mills for Aluminum Alloys - Corner Radius
Corner Radius End Mill; 3/32″ Dia. × 0.279″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 3 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 3/32″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 0.279″ | Length Group | 3D |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | DLC | Decimal Equivalent | 0.093″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.279″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
