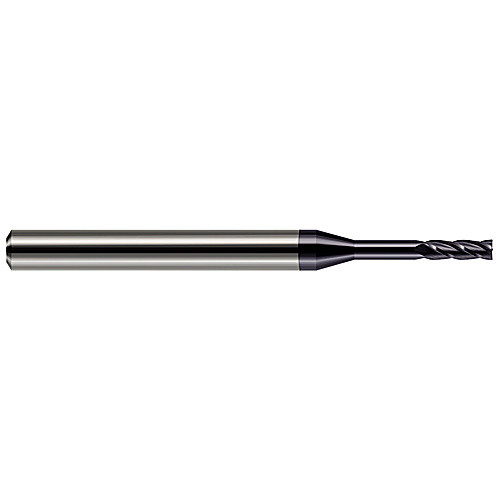

4 Flute - 0.0780″ (5/64) Cutter DIA × 0.2340″ (15/64) LOC × 0.5500″ Reach - AlTiN Coated Miniature End Mills - Square - Long Reach, Standard Flute
SQ End Mill; 5/64″ Dia. × 15/64″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/64″ | Neck Diameter (DN) | 0.0765″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Length (LN) | 0.316″ |
| Depth of Cut Maximum (APMX) | 15/64″ | Length Group | 7D |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.078″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 0.55″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
