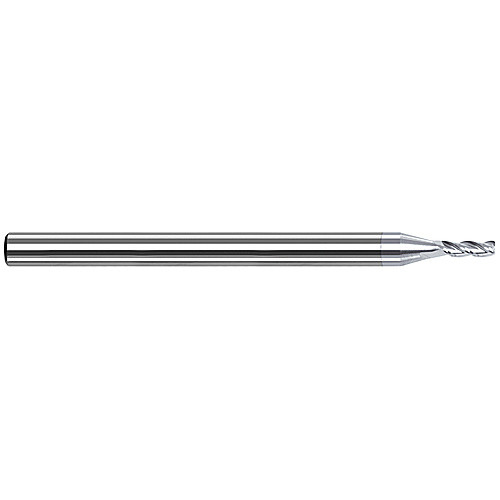

3 Flute - 0.2500″ (1/4) Cutter DIA × 0.0200″ Radius × 0.3750″ (3/8) LOC - TiB2 Coated Variable Helix End Mills for Aluminum Alloys - Corner Radius
SQ End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; TiB2
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Length Group | 1.5D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiB2 | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3/8″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
