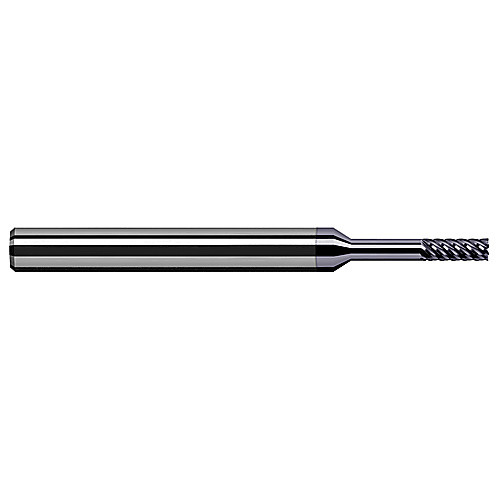

7 FL - 0.1250″ (1/8) Cutter DIA × 0.3750″ (3/8) LOC × 0.7500″ (3/4) Reach - AlTiN Nano Coated Variable Helix End Mills for High Temp Alloys - Finishers - Square - Long Reach
SQ End Mill; 1/8″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 7 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 3/8″ | Neck Diameter (DN) | 0.121″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 6D |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 7 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 44 Degrees | Measurement Type | Inch |
| Shank Type | Round | Shank Size (SS) | 1/8″ |
| End Shape | Square | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3/4″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
