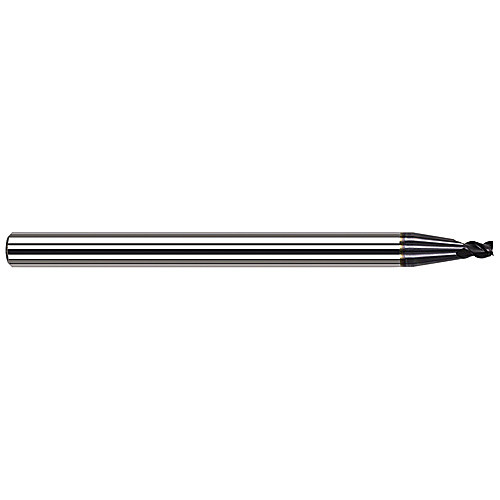

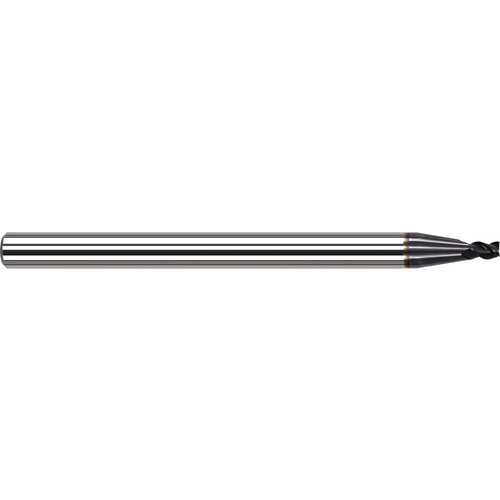

4 Flute - 0.0620″ (1/16) Cutter DIA × 0.0500″ LOC - AlTiN Nano Coated Variable Helix End Mills for High Temp Alloys - Square
SQ End Mill; 1/16″ Dia. × 0.05″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; 0.05″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/16″ | Usable Length (LU) | 0.05″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 0.05″ | Length Group | 0.8D |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.062″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 34 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
