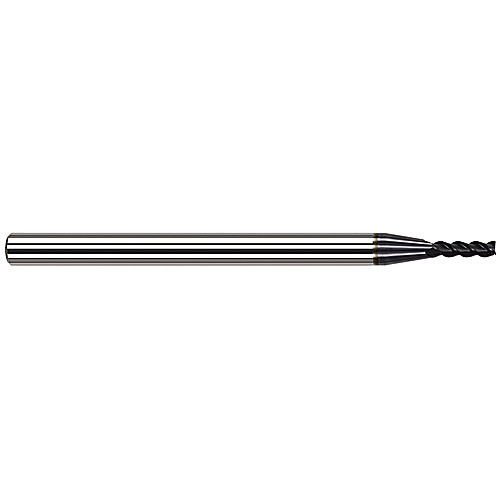

4 Flute - 0.0200″ (.5 mm) Cutter DIA × 0.0040″ Radius × 0.0600″ LOC - AlTiN Nano Coated Variable Helix End Mills for High Temp Alloys - Corner Radius
Corner Radius End Mill; 0.02″ Dia. × 0.06″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.02″ | Applicable Material | | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.004″ |
| Depth of Cut Maximum (APMX) | 0.06″ | Length Group | 3D |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 34 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.004″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 0.06″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.020
