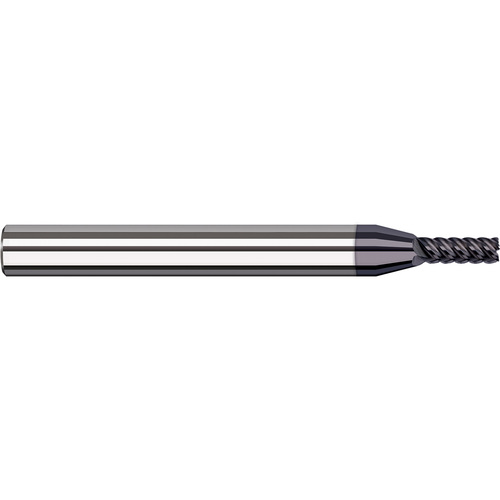

7 FL - 0.1875″ (3/16) Cutter DIA × 0.0200″ Radius × 0.5700″ LOC - AlTiN Nano Coated Variable Helix End Mills for High Temp Alloys - Finishers - Corner Radius
Corner Radius End Mill; 3/16″ Dia. × 0.57″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 7 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/16″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 0.57″ | Length Group | 3D |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 7 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 41 Degrees | Shank Size (SS) | 3/16″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.57″ | Single / Double End | Single End |
| Applicable Material | | Super-Alloys / Titanium | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.050
