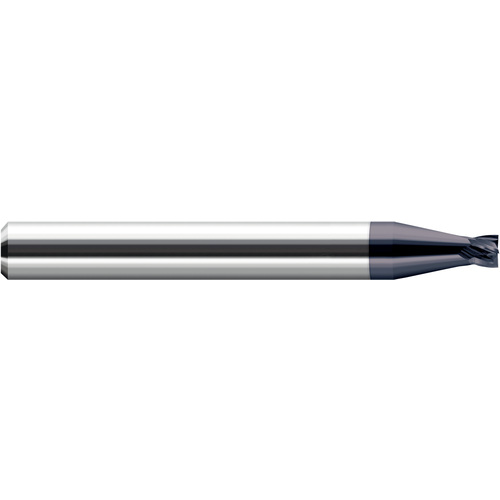

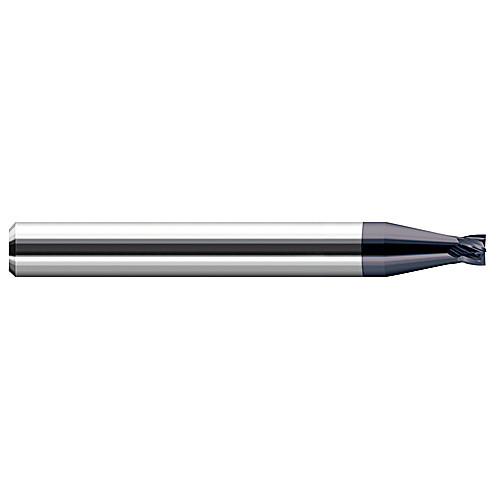

4 Flute - 0.1250″ (1/8) Cutter DIA × 0.1000″ LOC - AlTiN Coated Miniature End Mills - Square - Stub & Standard
SQ End Mill; 1/8″ Dia. × 0.1″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; 0.1″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 0.1″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | 0.8D |
| Depth of Cut Maximum (APMX) | 0.1″ | Flute Type | Spiral |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
