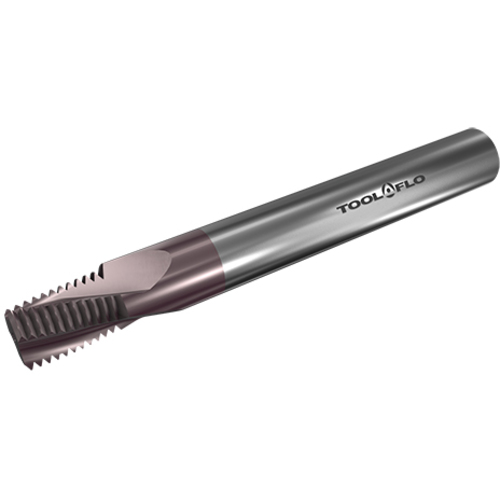

MTECB 0312C04 27NPSF AC22
Thread Mill; 1/8″ - 27 ; 0.312″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | 1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 27 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Cutting Position | BOTH |
| Cutting Diameter (DC) | 0.299″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.43″ |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPSF |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Hole used for External or Internal NPSF (National Pipe Straight Fuel) | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
