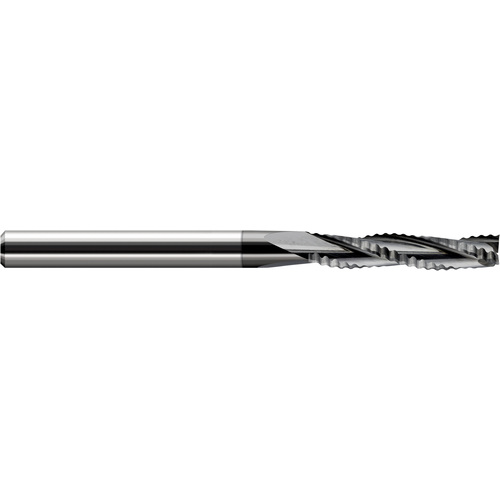

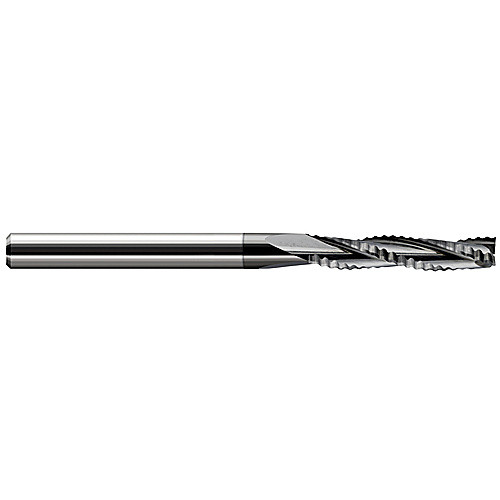

3 Flute - 0.0620″ (1/16) Cutter DIA × 0.3120″ (5/16) LOC - Amorphous Diamond Coated End Mills for Plastics - Roughers - Square Upcut - Slow Helix
SQ End Mill; 1/16″ Dia. × 5/16″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 3 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 1/16″ | Applicable Material | | Other Non-Metallic Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 5/16″ | Length Group | 5D |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | DLC | Decimal Equivalent | 0.062″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 22 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 5/16″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
