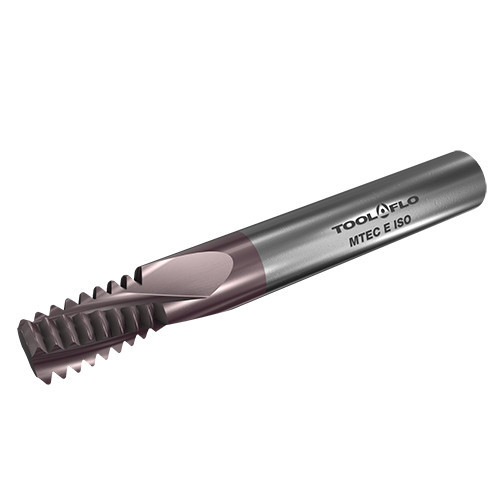

MTEC E 1010D15 1.5ISO AC22
| Thread Pitch (TP) | 1.5 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Series/List # | MTB |
| Cutting Diameter (DC) | 0.394″ | Measurement Type | Inch |
| Functional Length (LF) | 39 mm | Grade | AC22 |
| Overall Length (OAL) | 2.874″ | Depth of Cut Maximum (APMX) | 0.622″ |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid Carbide External Threading Endmills for ISO Thread Profile | Country of Origin | Israel |
Shipping Info
Package Weight
0.16
