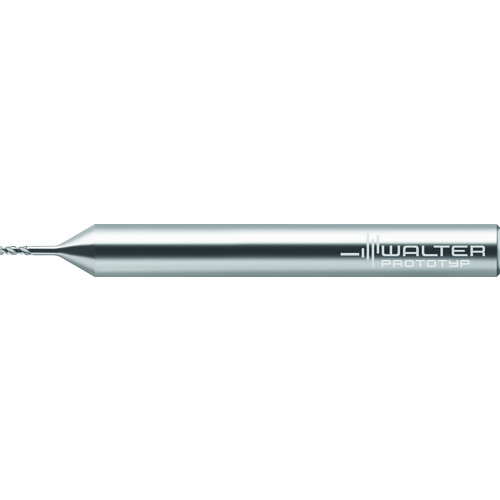

MC267-01.5A2B-WJ30UU
SQ End Mill; 1.5 mm Dia. × 3 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 2 FL ; 3 mm LBS ; Carbide ; Uncoated ; Series MC267
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.5 mm | Usable Length (LU) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 3 mm | Grade | WJ30UU |
| Overall Length (OAL) | 57 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | MC267 |
| End Shape | Square |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.053
