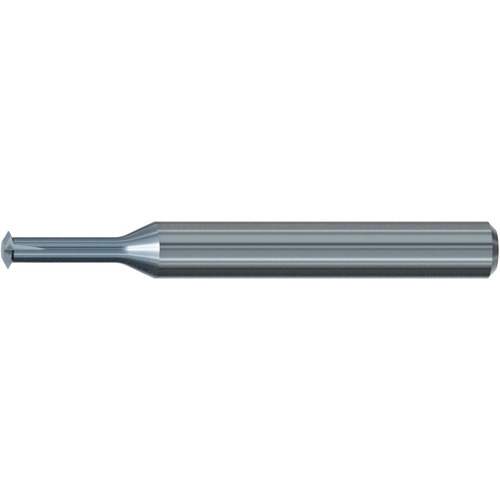

Thread Mill; M1 × 0.25 mm × 3 mm Shank Dia. × 39 mm OAL ; Carbide ; TiCN ; Series A223344
Thread Mill; M1-M1.2 × 0.25 mm ; 3 mm Shank Dia. × 39 mm OAL ; Carbide ; TiCN ; Series A223344
| Thread Size | M1-M1.2 | Coating | TiCN |
| Thread Pitch (TP) | 0.25 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Diameter Size (TDZ) | M1 - M1.2 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 3.3 mm |
| Cutting Diameter (DC) | 0.7 mm | Series/List # | GF243706 |
| Overall Length (OAL) | 39 mm | Length Group | 2xD |
| Flute Count (NOF) | 1 | Tool Type | Thread Mill |
| Shank Type | Round | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Remarks | • Single plane solid carbide circular thread mill. • One tool can thread more than one thread size and pitch. • Full bottoming threads to within 1 pitch • Eliminate the need for multiple tool holder pockets | Country of Origin | Germany |
Shipping Info
Package Weight
0.0044
