6-(32 OR 40)-ZGFI-3XD

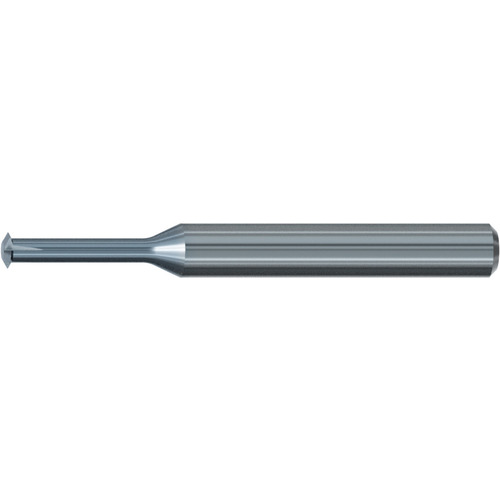

Thread Mill; #6 - 32 | 40 ; 1/8″ Shank Dia. × 1-5/8″ OAL ; Carbide ; TiCN ; Series GFS83706
| Thread Size | #6 | Application | | External Thread Milling | Internal Thread Milling | |
| Threads per Inch (TPI) | 32 | 40 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | #6 | Cutting Edge Material | Carbide |
| Thread Standard | UNC | UNF | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Series/List # | GFS83706 |
| Cutting Diameter (DC) | 0.106″ | Length Group | 3xD |
| Overall Length (OAL) | 1-5/8″ | Tool Type | Thread Mill |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.414″ |
| Shank Type | Weldon | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coating | TiCN |
Product Features
| Remarks | • Single plane solid carbide circular thread mill. • One tool can thread more than one thread size and pitch. • Full bottoming threads to within 1 pitch • Eliminate the need for multiple tool holder pockets | Country of Origin | Germany |
Shipping Info
Package Weight
0.05
