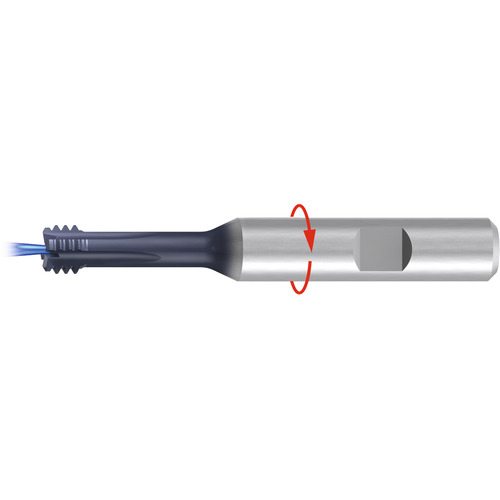

Thread Mill; 3/4″ - 16 × 20 mm Shank Dia. × 111 mm OAL ; Carbide ; TiAlN ; Series A503344
Thread Mill; 3/4″ - 16 ; 20 mm Shank Dia. × 111 mm OAL ; Carbide ; AlTiN ; Series A503344
| Thread Size | 3/4″ | Coating | AlTiN |
| Threads per Inch (TPI) | 16 | Application | | Drilling | Internal Thread Milling | |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | | Hard Materials | |
| Thread Standard | UNF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Flute Type | Straight |
| Cutting Diameter (DC) | 15.38 mm | Series/List # | GF733208 |
| Overall Length (OAL) | 111 mm | Length Group | 2xD |
| Flute Count (NOF) | 5 | Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 6.4 mm |
| Shank Type | Weldon | Cutting Direction (HAND) | Left Hand |
Product Features
| Remarks | • Solid carbide circular thread mill with 4 rows of cutting teeth. • Flute design for drilling, roughing and finishing in a single profile. • TIALN-T46 coating for additional heat and wear resistance. • For high tensile strength materials, 44 to 66 HRC. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
