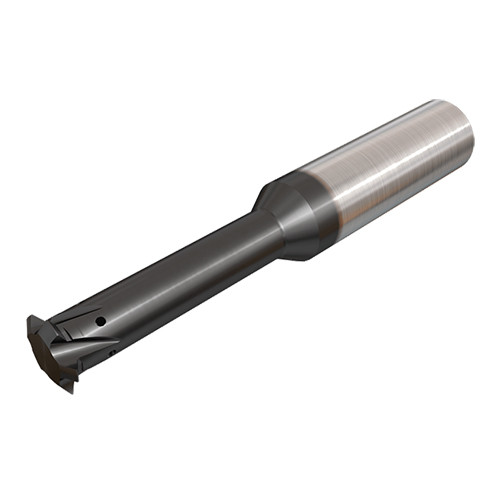

MTECI 06032C9 A60 IC902
Thread Mill; (a) Several Sizes ; 0.236″ Shank Dia. × 2.244″ OAL ; Carbide ; AlTiN ; IC902 ; Series MTB
| Thread Size | (a) Several Sizes | Pitch Internal | 0.50-1.00″ |
| Thread Standard | THFT | | Pitch External | 0.50-1.00″ |

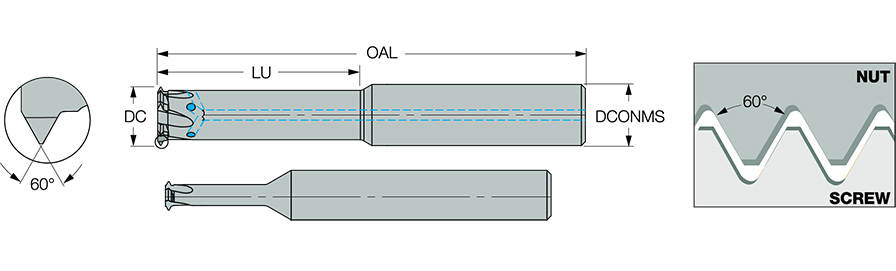

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.126″ | Cutting Position | Internal |
| Functional Length (LF) | 39 mm | Usable Length (LU) | 0.374″ |
| Overall Length (OAL) | 2.244″ | Series/List # | MTB |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External | Grade | IC902 |
| Shank Type | Round | Tool Type | Solid carbide thread mills |
| Coating | AlTiN | Depth of Cut Maximum (APMX) | 0.0185″ |
| Application | | External Thread Milling | Internal Thread Milling | | Cutting Direction (HAND) | Left Hand|Right Hand |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Pitch TPI Internal (TPI Int) | 48-24 | Connection Code Machine Side (CCMS) | Cylindrical |
| Pitch TPI External (TPI Ext) | 48-24 | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | 60° partial profile solid carbide thread mills with coolant holes in the large diameters, for internal and external threads. Single cutting edge, used for deep threads and where very long overhang is required. | Country of Origin | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Package Weight
0.051
