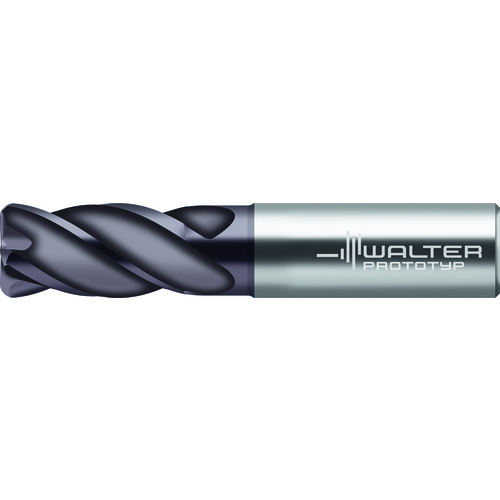

MC230-20.0A4B250C-WK40TF
SQ End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 2.5 mm RE ; 4 FL ; 52 mm LBS ; Carbide ; TiAlN ; Series MC230
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Usable Length (LU) | 52 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 38 mm | Grade | WK40TF |
| Overall Length (OAL) | 104 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | MC230 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 2.5 mm |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.858
