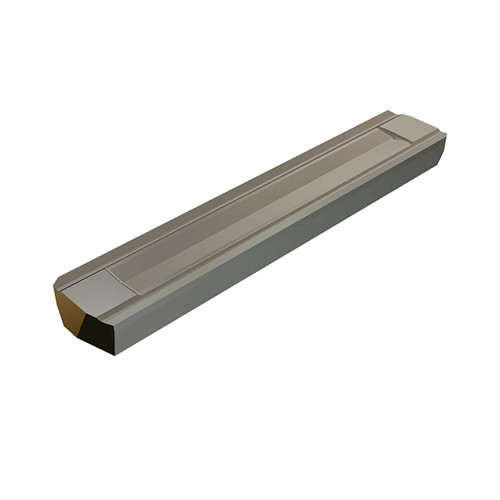

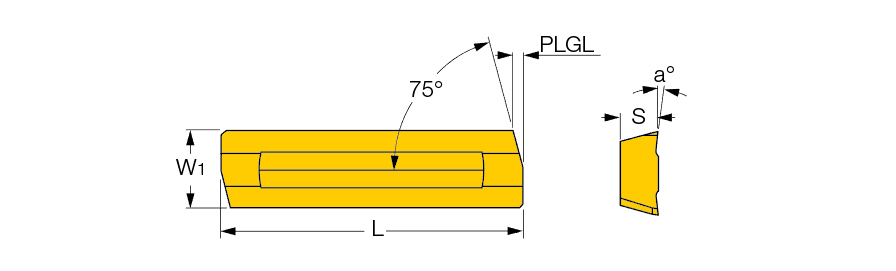

RM-SEI-4C-12 IC07
| Insert Seat Size Code (SSC) | 4.0 | Coating | Uncoated |
| Angle | 12 Degrees | Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | |
| Cutting Edge Length (L) | 0.886″ | Tool Type | Reaming Regular Inserts. |
| Insert Width (W1) | 0.26″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.118″ | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Grade | IC07 |
Product Features
| Family Description | Single Edge Reamer Inserts, suitable for aluminum and brass. | Country of Origin | Israel |
| Remarks | Lead type of insert should be compatible with lead type of the tool Available on request |
Shipping Info
Package Weight
0.017
