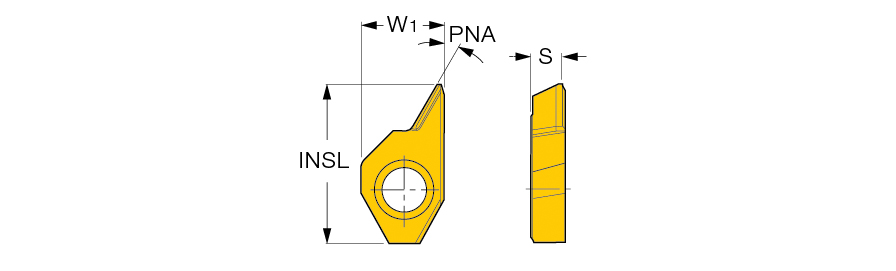

XCGT 090300-45DT IC808
| Insert Width (W1) | 8.5 mm | Grade | IC808 |
| Insert Thickness (S) | 3.3 mm | Application | | Chamfering | Drilling | |
| Insert Edge Length (INSL) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Tool Type | Indexable drilling inserts |
| Shape | Special | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Angle | 30 Degrees | Insert Length (INSL) | 16 mm |
Product Features
| Family Description | Chamfering inserts used on drill holders together with UNISUMOCHAM or UNICHAMDRILL drills for chamfering and drilling in one operation. | Country of Origin | Israel |
Shipping Info
Package Weight
0.121
