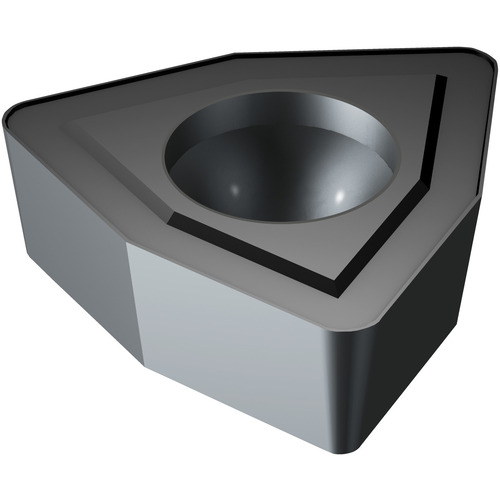

WCMX 05 03 08 R-53 3040 U-DRILL INSERT
Drill Insert; 5.43 mm Length × 3.18 mm Thickness × 7.94 mm IC × 0.8 mm Corner Radius ; Carbide ; 3040
Additional Tariff Surcharge of 8 %
| Cutting Edge Length (L) | 5.43 mm | Grade | 3040 |
| Insert Thickness (S) | 3.18 mm | Applicable Material | | Steel | Cast Iron | |
| Inscribed Circle Diameter (IC) | 7.94 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Right Hand |
| Fixing Hole Diameter (D1) | 3.2 mm | Insert Style | WCMX 05 03 08 R-53 |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
.40000
Package Width
.40000
Package Height
.18900
Package Weight
0.073
