ZCMT150408 PR1225
Drill Insert; 0.7008″ Length × 0.622″ Width × 3/16″ Thickness × 1/32″ Corner Radius ; Irregular ; Carbide ; MEGACOAT ; PR1225 ; Series DRZ Magic Drill

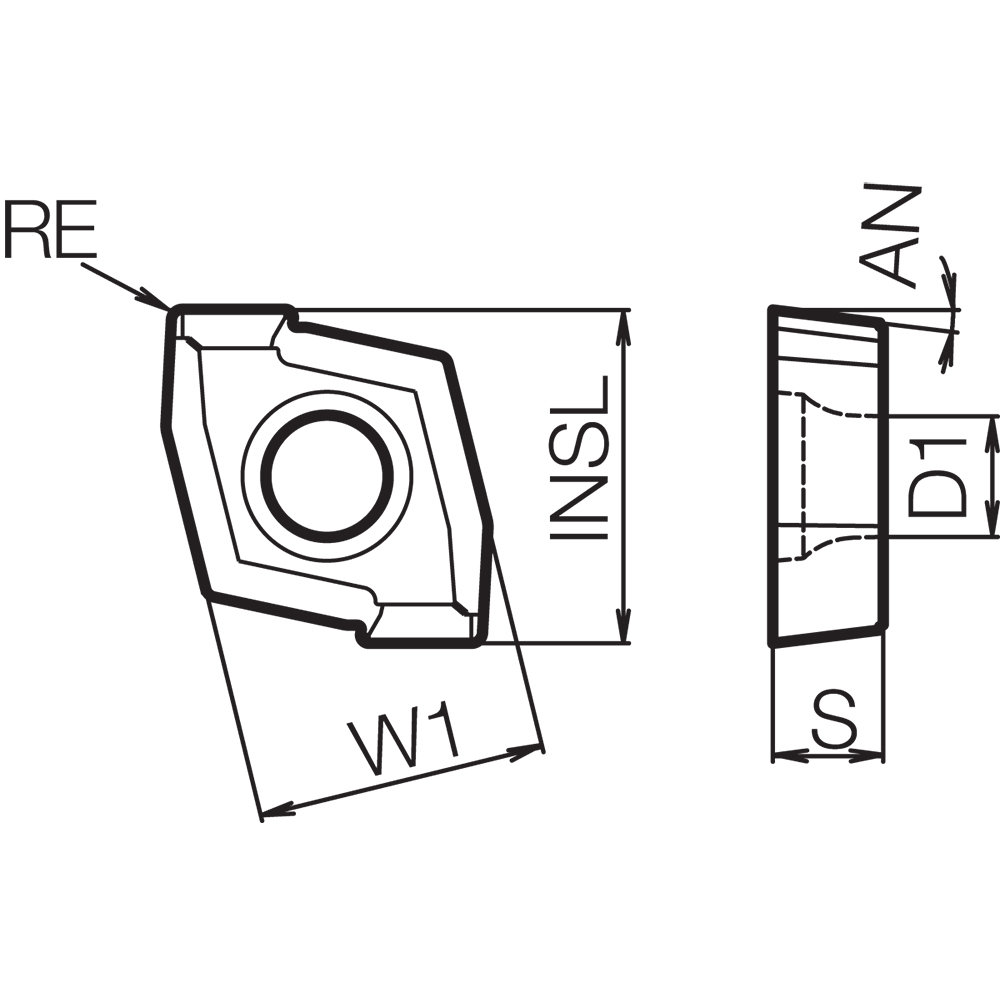

| Cutting Edge Length (L) | 0.7008″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Width (W1) | 0.622″ | Series/List # | DRZ Magic Drill |
| Insert Thickness (S) | 3/16″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 4 |
| Fixing Hole Diameter (D1) | 0.22″ | Measurement Type | Inch |
| Shape | Irregular | Cutting Direction (HAND) | Right Hand |
| Coating | MEGACOAT | Insert Style | ZCMT |
| Grade | PR1225 | Insert Size | 150408 |
| Application | Drilling |
Product Features
| Family Description | Alternate Manufacture # ZCMT150408PR1225 | Country of Origin | Japan |
Shipping Info
Package Length
3.25000
Package Width
2.25000
Package Height
.50000
Package Weight
1
