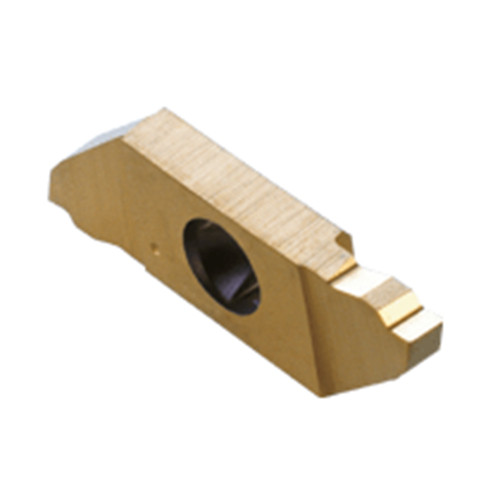

NPMT 05504R1 IC908

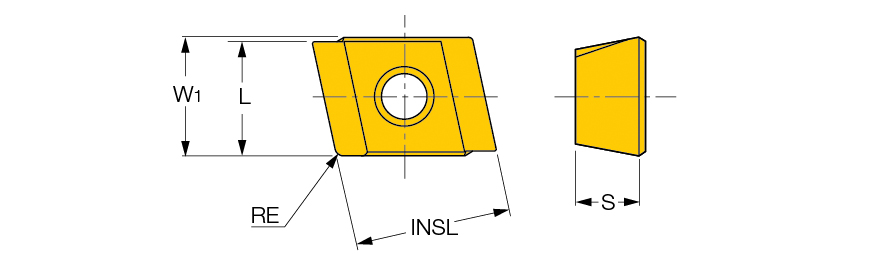

| Cutting Edge Length (L) | 0.394″ | Application | | Drill Mill | Drilling | |
| Insert Width (W1) | 0.205″ | Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys |
| Insert Thickness (S) | 0.157″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.217″ | Tool Type | Gun Drill Inserts |
| Corner Radius (RE) | 0.024″ | Measurement Type | Inch |
| Shape | 75° Rhombic | Cutting Direction (HAND) | Left Hand |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Inserts for Drilling Heads ISD-EI / IDD-EA. | Country of Origin | USA |
Shipping Info
Package Weight
.0070
