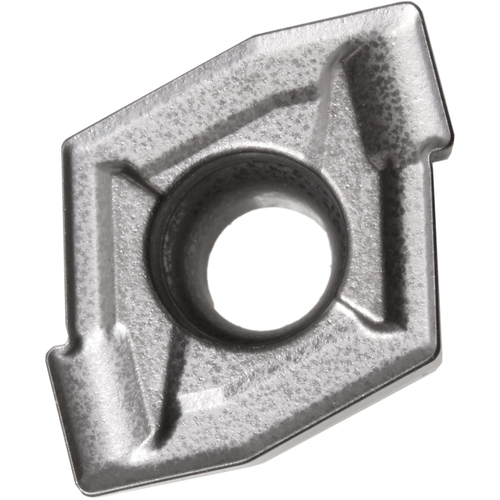

ZCMT 06T204SP KW10 INSERT
Drill Insert; 0.2756″ Length × 0.2362″ Width × 0.1102″ Thickness × 1/64″ Corner Radius ; Irregular ; Carbide ; Uncoated ; KW10 ; Series DRZ Magic Drill

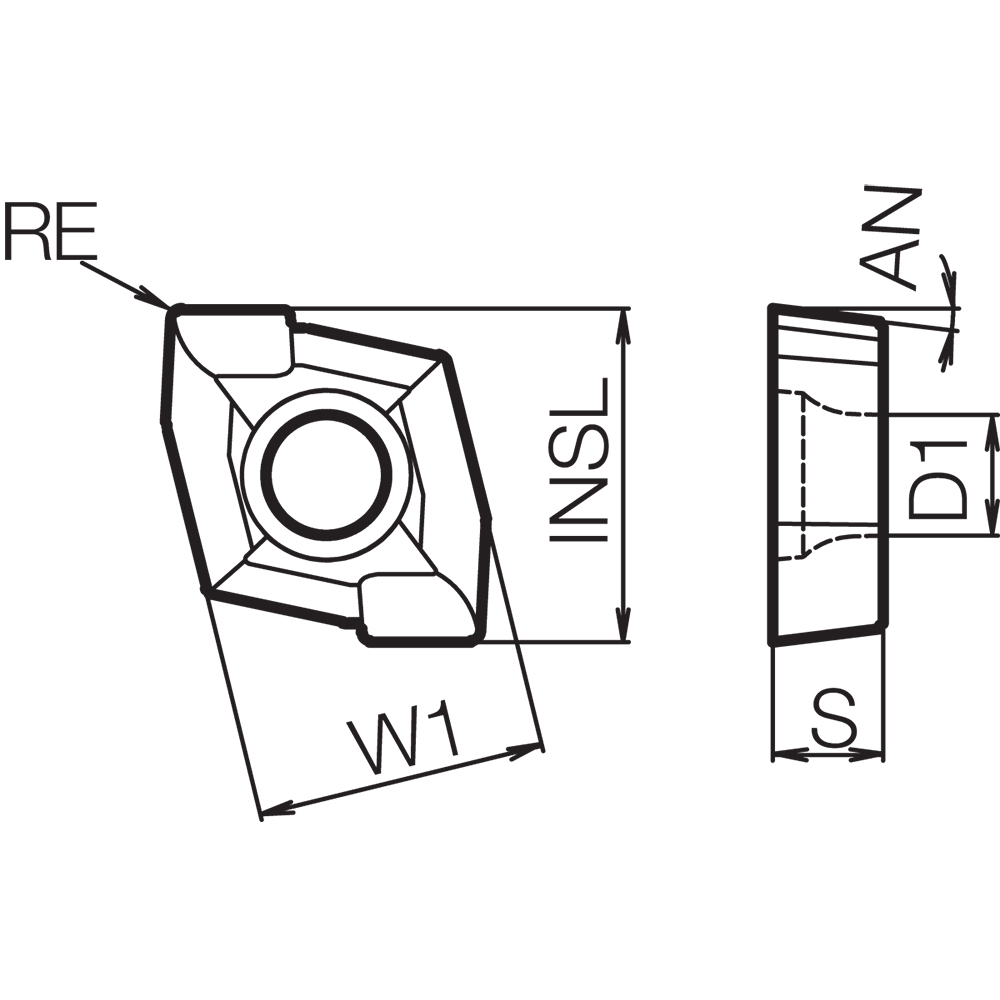

| Cutting Edge Length (L) | 0.2756″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Insert Width (W1) | 0.2362″ | Chip Breaker Type | SP |
| Insert Thickness (S) | 0.1102″ | Series/List # | DRZ Magic Drill |
| Corner Radius (RE) | 1/64″ | Cutting Edge Material | Carbide |
| Fixing Hole Diameter (D1) | 0.098″ | Number of Cutting Edges | 4 |
| Shape | Irregular | Measurement Type | Inch |
| Coating | Uncoated | Cutting Direction (HAND) | Right Hand |
| Grade | KW10 | Insert Style | ZCMT |
| Application | Drilling | Insert Size | 06T204 |
Product Features
| Family Description | Alternate Manufacture # ZCMT06T204SPKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
0.099
