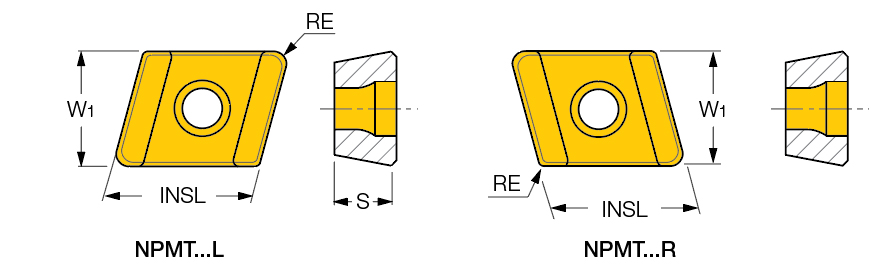

NPMT 080408L-G-C IC520
Drill Insert; 10 mm Length × 4 mm Thickness × 8 mm IC × 0.8 mm Corner Radius ; 75 Rhombic ; Carbide ; TiCN+TiN ; IC520
| Cutting Edge Length (L) | 10 mm | Application | | Deep Drills | |
| Insert Thickness (S) | 4 mm | Applicable Material | | Stainless Steel | Non Ferrous Metals | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 8 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Gun Drill Inserts |
| Shape | 75° Rhombic | Measurement Type | Metric |
| Coating | TiCN+TiN | Cutting Direction (HAND) | Left Hand |
| Grade | IC520 | Body Material | Carbide |
Product Features
| Family Description | Internal and central Inserts for Drilling Heads DSD-EF-FB / DDD-EF-FB | Country of Origin | Japan |
Shipping Info
Package Weight
0.011
Related Documentation
