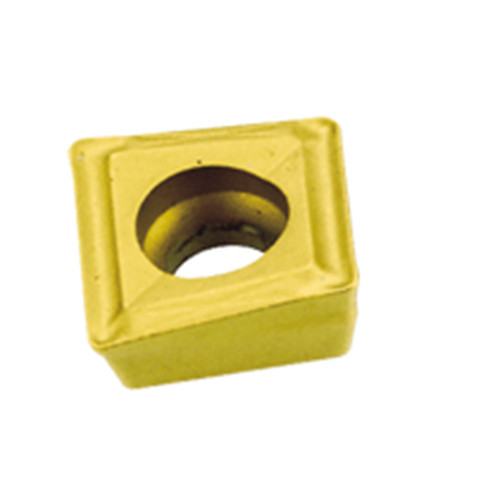

XOMT 060204-GF IC908

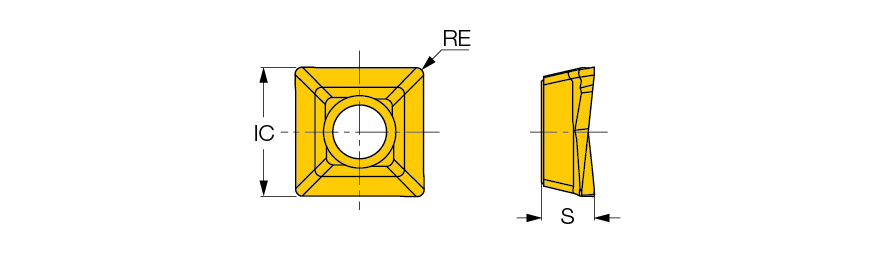

| Insert Thickness (S) | 0.101″ | Application | | Drill Mill | Drilling | |
| Inscribed Circle Diameter (IC) | 0.236″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Shape | Special | Tool Type | Indexable drilling inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
Product Features
| Family Description | Square inserts for DR drills and A-SXFOR/L boring bars, for ductile materials. | Country of Origin | Israel |
| Remarks | Two cutting edges Low cutting forces due to high cutting edges and positive angles |
Shipping Info
Package Weight
0.009
