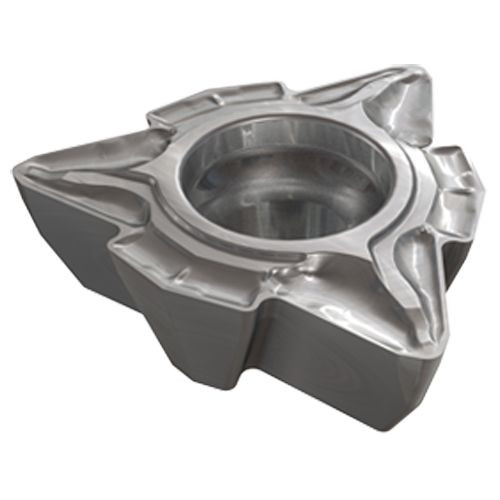

WOLH 2.5-1-SW IC908
Drill Insert; 0.197″ Length × 0.15″ Thickness × 0.315″ IC × 0.0157″ Corner Radius ; Trigon ; Carbide ; TiAlN ; IC908

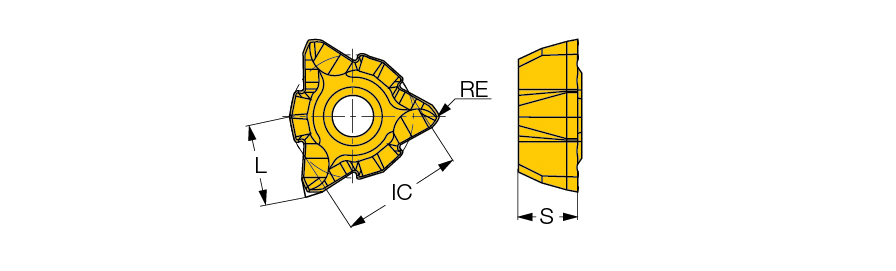

| Cutting Edge Length (L) | 0.197″ | Application | | Drilling | |
| Insert Thickness (S) | 0.15″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 0.315″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Indexable drilling inserts |
| Shape | Trigon | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Inserts for DZ drills with serrated cutting edges and a wide chipformer, for chip splitting at medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Length
.37000
Package Width
.37000
Package Height
.15000
Package Weight
0.007
