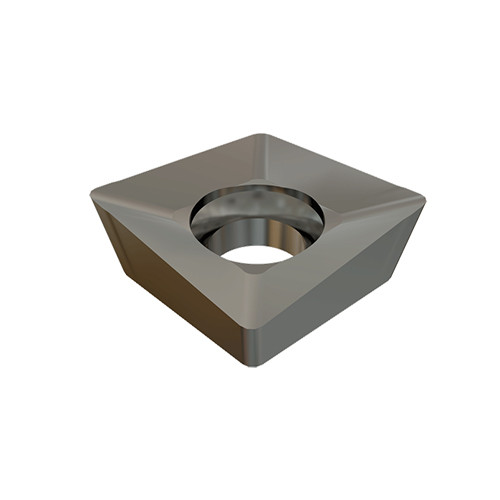

XOMT 060204-DT IC250
Drill Insert; 0.243″ Length × 0.101″ Thickness × 0.243″ IC × 0.0157″ Corner Radius ; 90 Degrees Included Angle ; Special ; Carbide ; TiCN+TiN ; IC250

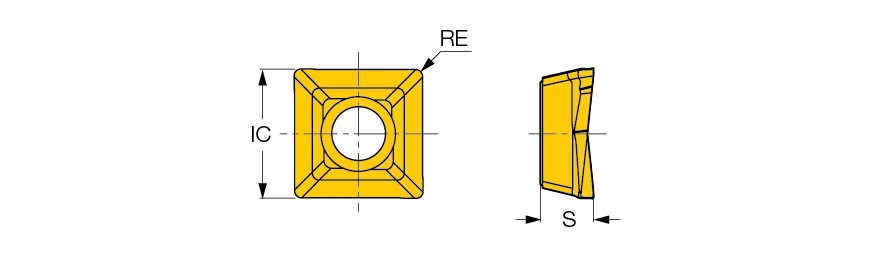

| Cutting Edge Length (L) | 0.243″ | Grade | IC250 |
| Insert Thickness (S) | 0.101″ | Application | | Drilling | Drilling Ext Face Int. Turning | Int. XOMT 88° Approach | |
| Insert Included Angle (EPSR) | 90 Degrees | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 0.243″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Indexable drilling inserts |
| Shape | Special | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
Product Features
| Family Description | Inserts for DR drills and A-SXFOR/L boring bars. | Country of Origin | Israel |
| Remarks | Two cutting edges For hard materials and interrupted cut |
Shipping Info
Package Weight
0.004
