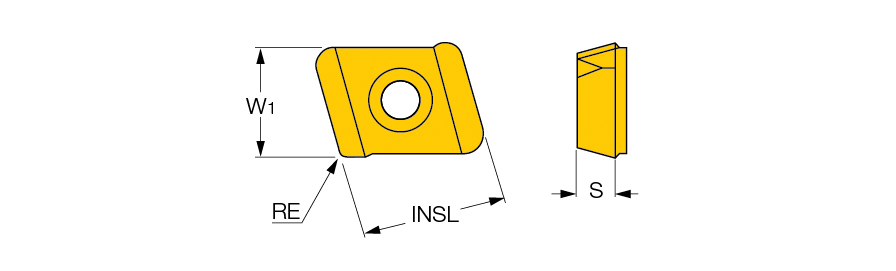

NPMX 0802RG IC908
| Insert Width (W1) | 0.335″ | Application | | Drill Mill | Drilling | |
| Insert Thickness (S) | 0.094″ | Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys |
| Inscribed Circle Diameter (IC) | 0.256″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.031″ | Tool Type | Gun Drill Inserts |
| Shape | 75° Rhombic | Measurement Type | Inch |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Grade | IC908 | Body Material | Carbide |
Product Features
| Family Description | Inserts for Drilling Heads ISD-EC / IDD-EC / ISD-IC | Country of Origin | Israel |
Shipping Info
Package Weight
.0060
