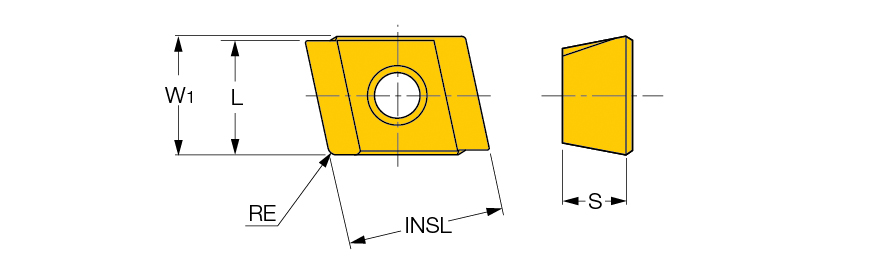

NPMT 09504R2-DT IC520
| Cutting Edge Length (L) | 0.394″ | Application | | Drill Mill | Drilling | |
| Insert Width (W1) | 0.362″ | Applicable Material | Stainless Steel|Non Ferrous Metals|Hi-Temp Alloys |
| Insert Thickness (S) | 0.157″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.374″ | Tool Type | Gun Drill Inserts |
| Corner Radius (RE) | 0.016″ | Measurement Type | Inch |
| Shape | 75° Rhombic | Cutting Direction (HAND) | Right Hand |
| Coating | TiCN|TiN | Body Material | Carbide |
| Grade | IC520 |
Product Features
| Family Description | Inserts for Drilling Heads ISD-EI / IDD-EI | Country of Origin | IL |
Shipping Info
Package Weight
.0000
