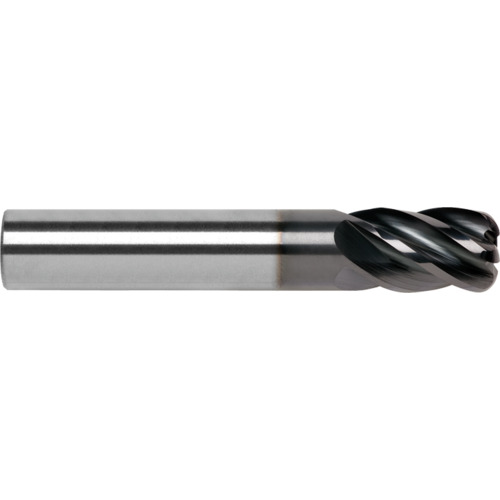

MXG-502-10 10MM DIA 5-FLU
Corner Radius End Mill; 10 mm Dia. × 20 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 5 FL ; AlTiN ; Series MXG-502
| Cutting Diameter (DC) | 10 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Radius (RE) | 0.6 mm |
| Depth of Cut Maximum (APMX) | 20 mm | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 72 mm | Measurement Type | Metric |
| Coating | AlTiN | Series/List # | MXG-502 |
| Flute Count (NOF) | 5 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
