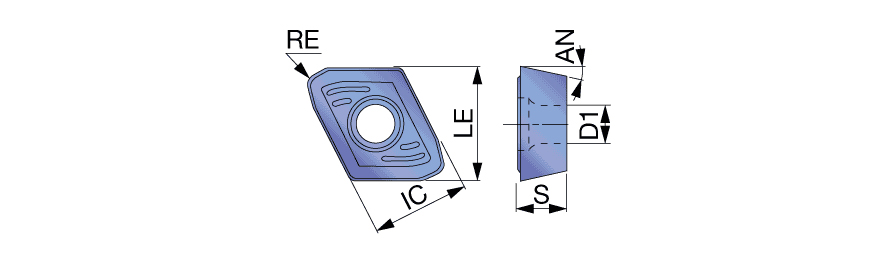

XPMT050204R-DW AH740
Drill Insert; 0.205″ Length × 0.213″ Width × 0.094″ Thickness × 0.205″ IC × 0.0157″ Corner Radius ; Square ; Carbide ; TiAlN ; AH740
| Cutting Edge Length (L) | 0.205″ | Grade | AH740 |
| Insert Width (W1) | 0.213″ | Application | | Drilling | ISO 26623 1 (TungCap) | |
| Insert Thickness (S) | 0.094″ | Applicable Material | Steel | |
| Inscribed Circle Diameter (IC) | 0.205″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Indexable drilling inserts |
| Fixing Hole Diameter (D1) | 0.09″ | Measurement Type | Inch |
| Shape | Square | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | TungDrill insert with pressed DW chipbreaker for high feed drilling of steel | Country of Origin | Japan |
Shipping Info
Package Weight
0.004
