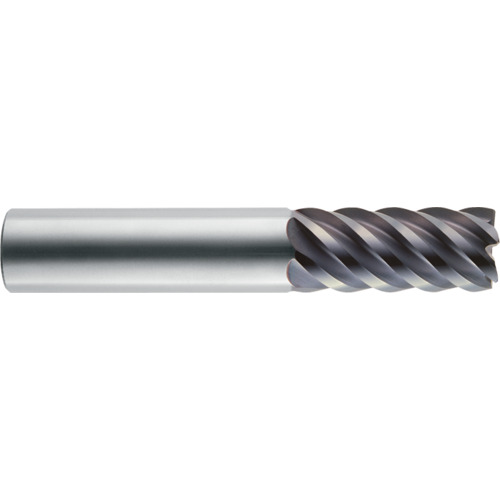

MXF-802-25-030-FL 25MM DI
SQ End Mill; 25 mm Dia. × 38 mm LOC × 25 mm Shank Dia. × 104 mm OAL ; 3 mm RE ; 8 FL ; AlTiN ; Series MXF-802
| Cutting Diameter (DC) | 25 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 25 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 104 mm | Tool Type | Solid Carbide Endmill |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 8 | Series/List # | MXF-802 |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.999
