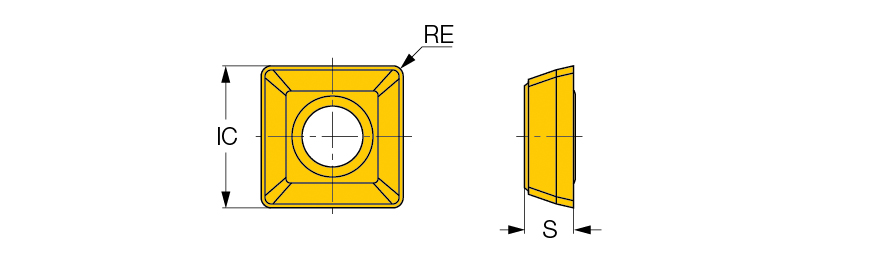

| Insert Thickness (S) | 0.142″ | Application | | Drilling | |
| Inscribed Circle Diameter (IC) | 0.303″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0197″ | Cutting Edge Material | Carbide |
| Shape | Square | Tool Type | Indexable drilling inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |

Product Features
| Family Description | Precision ground inserts with DT general use chipformer and a wiper for MNC large diameter drills | Country of Origin | Israel |
Shipping Info
Package Length
3.75000
Package Width
1.50000
Package Height
.05000
Package Weight
0.008
