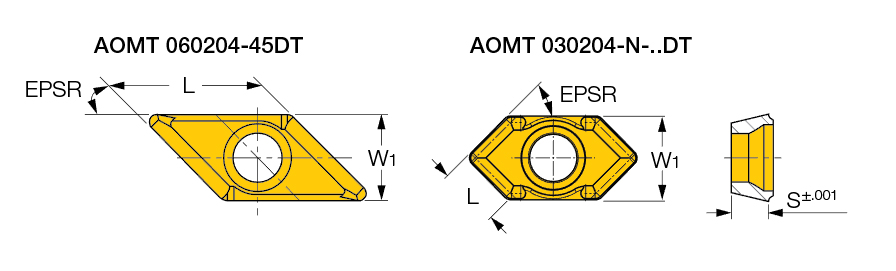

AOMT 030204-N-45DT IC1008
Drill Insert; 0.11″ Length × 0.157″ Width × 0.063″ Thickness ; 45.5 Degrees Included Angle ; 85 Parallelogram ; Carbide ; TiAlN+TiN ; IC1008
| Cutting Edge Length (L) | 0.11″ | Application | | Chamfering | Drilling | |
| Insert Width (W1) | 0.157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.063″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 45.5 Degrees | Tool Type | Indexable drilling inserts |
| Shape | 85° Parallelogram | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1008 |
Product Features
| Family Description | Chamfering inserts | Country of Origin | Israel |
| Remarks | The cutting speed is dependent on the drilling insert being used |
Shipping Info
Package Weight
0.003
