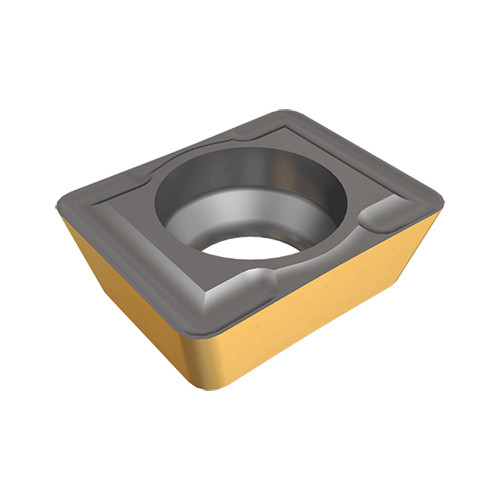

AOMT 040204-90DT IC808
Drill Insert; 0.157″ Length × 0.063″ Thickness × 0.157″ IC × 0.0157″ Corner Radius ; 85 Parallelogram ; Carbide ; TiAlN+AlTiN+TiN ; IC808

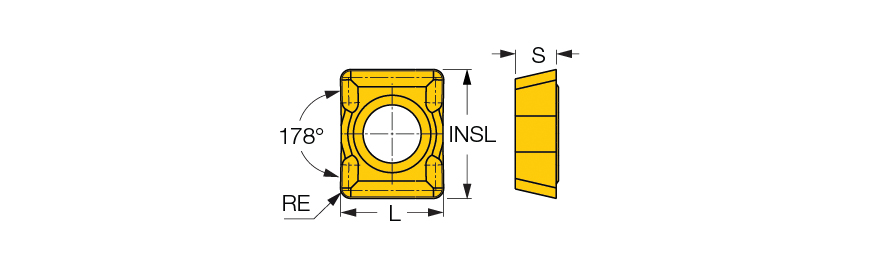

| Cutting Edge Length (L) | 0.157″ | Application | | Drill Mill | Drilling | |
| Insert Thickness (S) | 0.063″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 0.157″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Indexable drilling inserts |
| Shape | 85° Parallelogram | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Inserts for DR drills with DT chipformer, for general applications at medium-to-high feed rates and HD chipformer for carbon steel and soft materials. | Country of Origin | Israel |
| Remarks | Used on .472-.531 DR drills |
Shipping Info
Package Length
3.84500
Package Width
1.57700
Package Height
.50000
Package Weight
0.005
