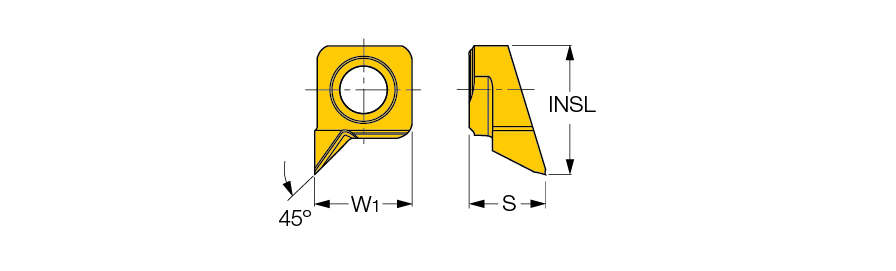

XOGX 090700-45DT IC528
Drill Insert; 0.472″ Length × 0.354″ Width × 0.276″ Thickness × 0.354″ IC × 0.024″ Corner Radius ; 45 Degrees Included Angle ; Special ; Carbide ; TiCN+TiN ; IC528
| Cutting Edge Length (L) | 0.472″ | Grade | IC528 |
| Insert Width (W1) | 0.354″ | Application | | Chamfering | |
| Insert Thickness (S) | 0.276″ | Applicable Material | Steel |Stainless Steel |Hi Temp Alloys | |
| Insert Included Angle (EPSR) | 45 Degrees | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.354″ | Tool Type | Indexable drilling inserts |
| Corner Radius (RE) | 0.024″ | Measurement Type | Inch |
| Shape | Special | Body Material | Carbide |
| Coating | TiCN+TiN |
Product Features
| Family Description | Inserts used on chamfering rings. | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
