MXF-602-16-030-FL 16MM DI

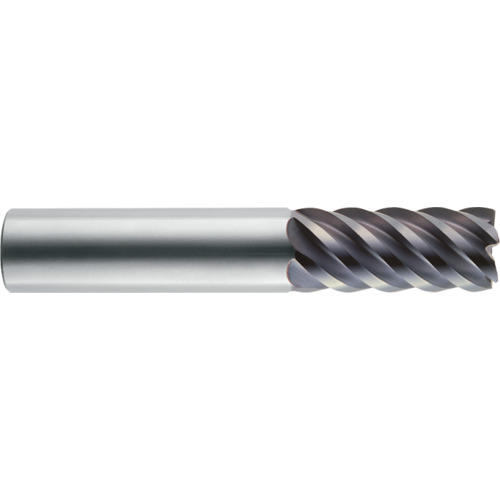

SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 3 mm RE ; 6 FL ; AlTiN ; Series MXF-602
| Cutting Diameter (DC) | 16 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 32 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 92 mm | Tool Type | Solid Carbide Endmill |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Series/List # | MXF-602 |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.999
