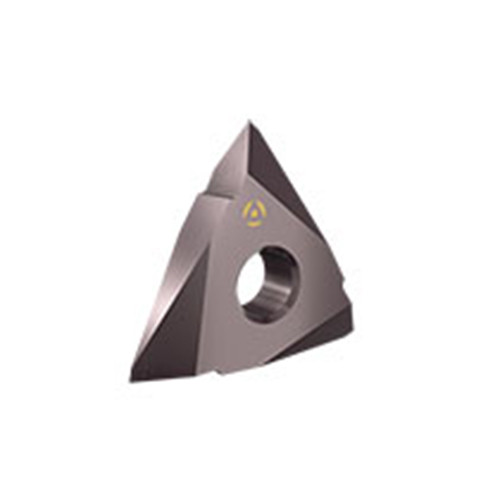

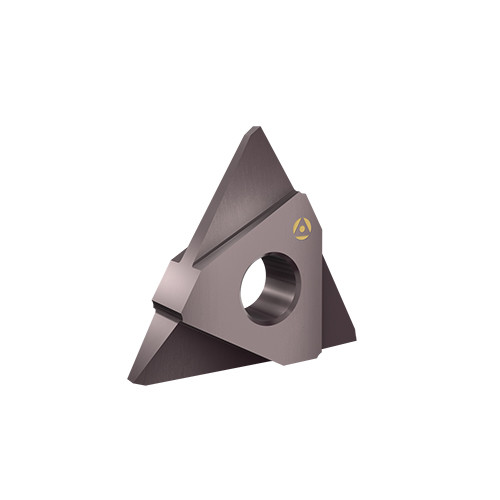

TPMA 43 NV AC3R
| Threads per Inch (TPI) | 0 | Angle | 5 Degrees |
| Corner Radius (RE) | 0.006″ | Application | | Int Ext Threading On Edge | |
| Insert Thickness (S) | 0.189″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Width (CW) | 0″ | Threads per Inch Maximum (TPIX) | 24 |
| Inscribed Circle Diameter (IC) | 1/2″ | Threads per Inch Minimum (TPIN) | 5 |
| Grade | AC3R | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | 60° Partial V-Thread Profile |
| Cutting Direction (HAND) | Neutral | Chip Breaker Type | PR |
Product Features
| Family Description | Internal and External FloEdge TPMA Style Threading Inserts with Positive Rake and 60° Partial Profile | Country of Origin | USA |
Shipping Info
Package Weight
0.001
