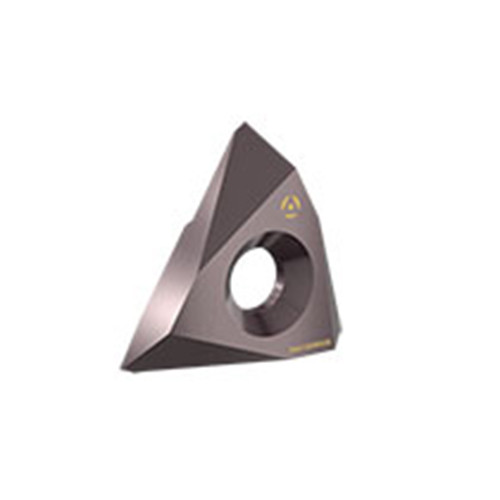

TNMC 32 NT 6P STUB AC3R
| Threads per Inch (TPI) | 6 | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0652″ | Application | | Int Ext Threading On Edge | |
| Insert Thickness (S) | 0.127″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Width (CW) | 0.065″ | Threads per Inch Maximum (TPIX) | 0 |
| Inscribed Circle Diameter (IC) | 3/8″ | Threads per Inch Minimum (TPIN) | 0 |
| Grade | AC3R | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | STUB ACME Am. Nat. B1.5 |
Product Features
| Family Description | Internal and External FloEdge TNMC Style Threading Inserts with STUB ACME Partial Profile | Country of Origin | USA |
