| Thread Standard | THFT | | Thread Pitch Minimum (TPN) | 0.25 mm |
| Corner Radius (RE) | 0.002″ | Thread Pitch Maximum (TPX) | 3 mm |
| Grade | IC908 | Profile Included Angle (PNA) | 60 Degrees |
| Coating | TiAlN | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Threads per Inch Maximum (TPIX) | 80 |
| Cutting Position | External | Threads per Inch Minimum (TPIN) | 8 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
Product Features

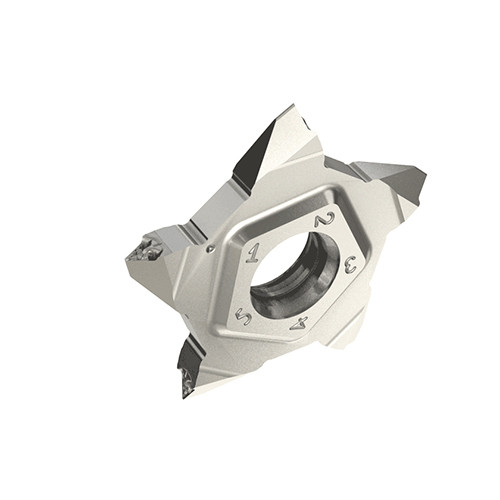

| Family Description | Precision ground pentagonal external threading inserts with a 60° partial profile for general applications | Country of Origin | Israel |
| Remarks | TPX=0.175xD DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
.49200
Package Weight
0.025
