| Thread Standard | THFT | | Thread Pitch Minimum (TPN) | 0.5 mm |

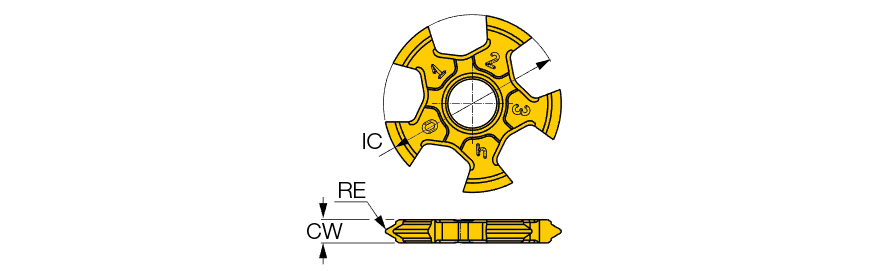

| Corner Radius (RE) | 0.0024″ | Thread Pitch Maximum (TPX) | 1.5 mm |
| Cutting Width (CW) | 0.083″ | Profile Included Angle (PNA) | 60 Degrees |
| Inscribed Circle Diameter (IC) | 0.63″ | Insert to Shank Reference | 0.5mm |
| Grade | IC908 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Threads per Inch Maximum (TPIX) | 48 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 16 |
| Cutting Position | External | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Threading (Ext.) Groove Turn T | | Thread Form Type (THFT) | VP60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

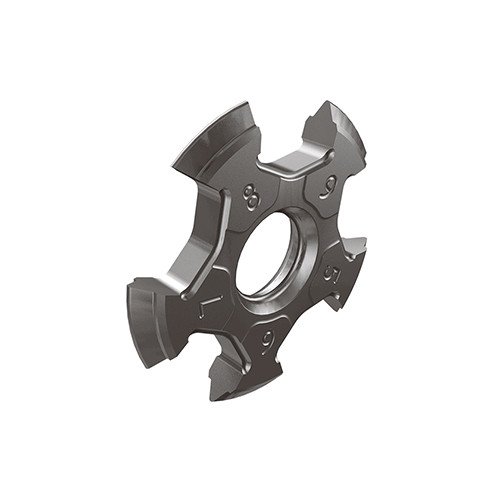

| Family Description | External inserts with 10 threading corners and 60° partial profile for general industry. | Country of Origin | Israel |
| Remarks | For Cutting speed recommendations click on More Info |
Shipping Info
Package Weight
0.001
