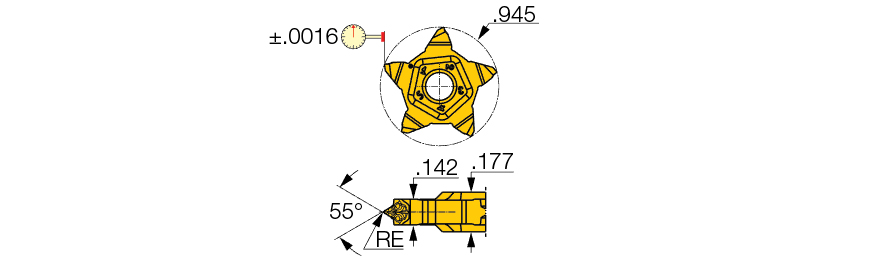

| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | |
| Threads per Inch (TPI) | 14 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0087″ | Profile Included Angle (PNA) | 55 Degrees |
| Grade | IC908 | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | BSPT55 |
| Cutting Direction (HAND) | Neutral |

Product Features

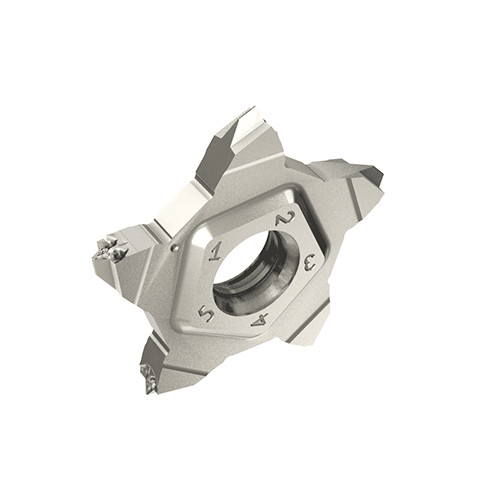

| Family Description | Precision ground BSPT (British Standard Pipe), full profile, pentagonal, external threading inserts with a chipformer for general applications. Applications: steam, gas and water pipes. | Country of Origin | Israel |
| Remarks | DMIN(inch)=5.435/TPI |
Shipping Info
Package Weight
0.025
