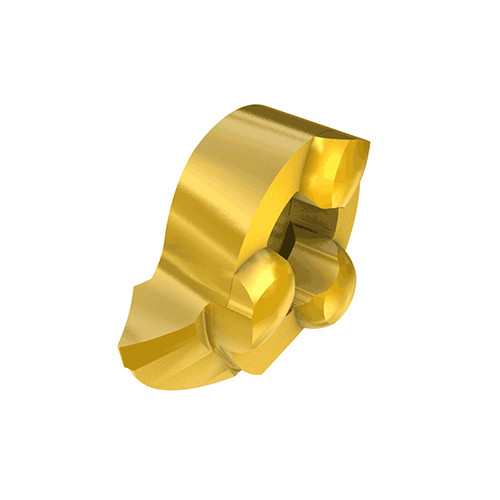

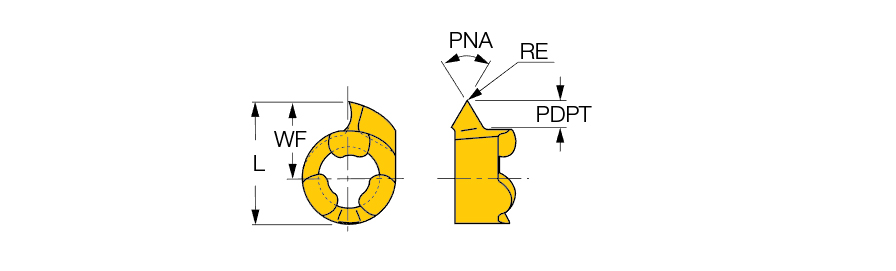

GIQR 11-MT-0.05 IC528
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 2.3 mm |
| Corner Radius (RE) | 0.002″ | Cutting Edge Length (L) | 0.42″ |
| Grade | IC528 | Profile Included Angle (PNA) | 60 Degrees |
| Coating | TiCN+TiN | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Threads per Inch Maximum (TPIX) | 50 |
| Cutting Direction (HAND) | Right Hand | Threads per Inch Minimum (TPIN) | 11 |
| Application | | Threading (Int.) | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.433″ | Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 0.5 mm |
Product Features
| Family Description | Internal threading inserts with a 60° partial profile for threading in .31″ and larger holes. | Country of Origin | Israel |
| Remarks | Can be used for thread milling by circular interpolation Pitch max 0.19xD D-diameter of thread DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B |
Shipping Info
Package Weight
0.006
