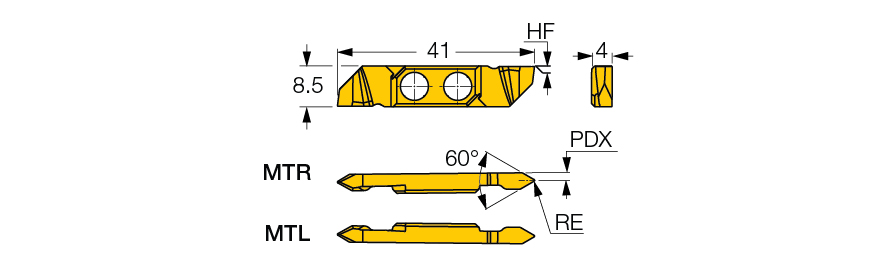

SCIR 41-MTR020 IC1008
| Thread Standard | THFT | | Thread Pitch Minimum (TPN) | 1.5 mm |
| Corner Radius (RE) | 0.2 mm | Thread Pitch Maximum (TPX) | 2.5 mm |
| Grade | IC1008 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN+TiN | Threads per Inch Maximum (TPIX) | 17 Threads/" |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 10 Threads/" |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | Threading (Ext.) Groove Turn T | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
Product Features
| Family Description | Threading inserts with a 60° partial profile. | Country of Origin | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A |
Shipping Info
Package Weight
0.019
