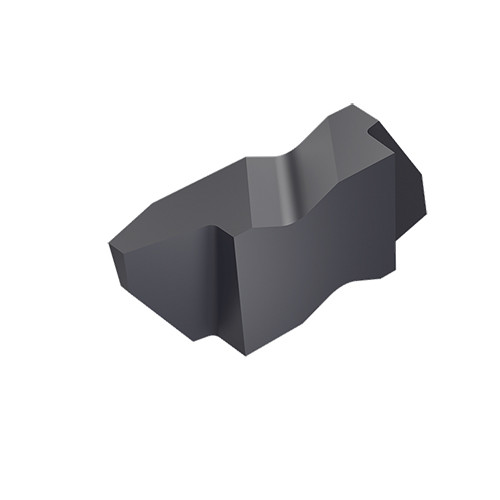

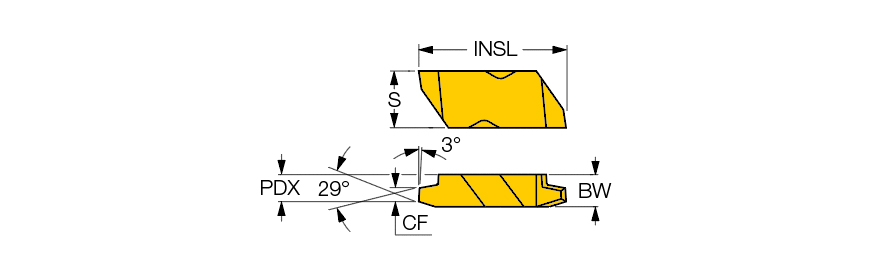

FLAS-3L4 IC908
| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | |
| Threads per Inch (TPI) | 4 /" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.344″ | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | STAC29 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Double-ended, precision, flat top threading inserts | Country of Origin | USA |
| Remarks | DMIN according to related boring bar Internal & External tolerance: ANSI/ASME B1.5 - 3G |
