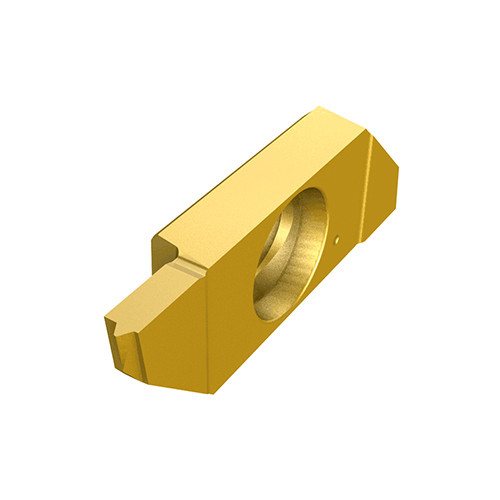

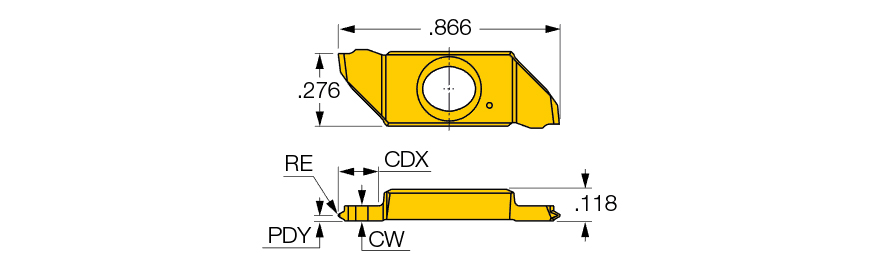

SCIR 22-MTR-0.75ISOIC1008
| Thread Standard | THFT | | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.75 mm | Application | | Threading (Ext.) Groove Turn T | |
| Corner Radius (RE) | 0.0039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.276″ | Cutting Edge Length (L) | 0.866″ |
| Cutting Width (CW) | 0.039″ | Tool Type | Threading Regular Inserts |
| Grade | IC1008 | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Cutting Position | External |
Product Features
| Family Description | Precision ground ISO metric, full profile threading inserts for general applications.for general applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
